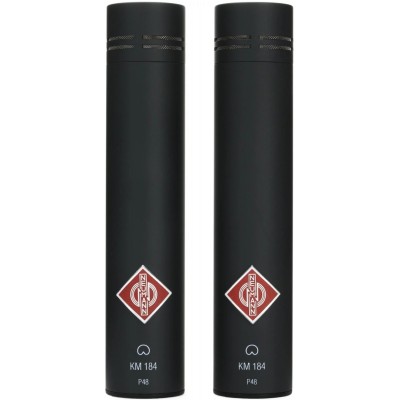

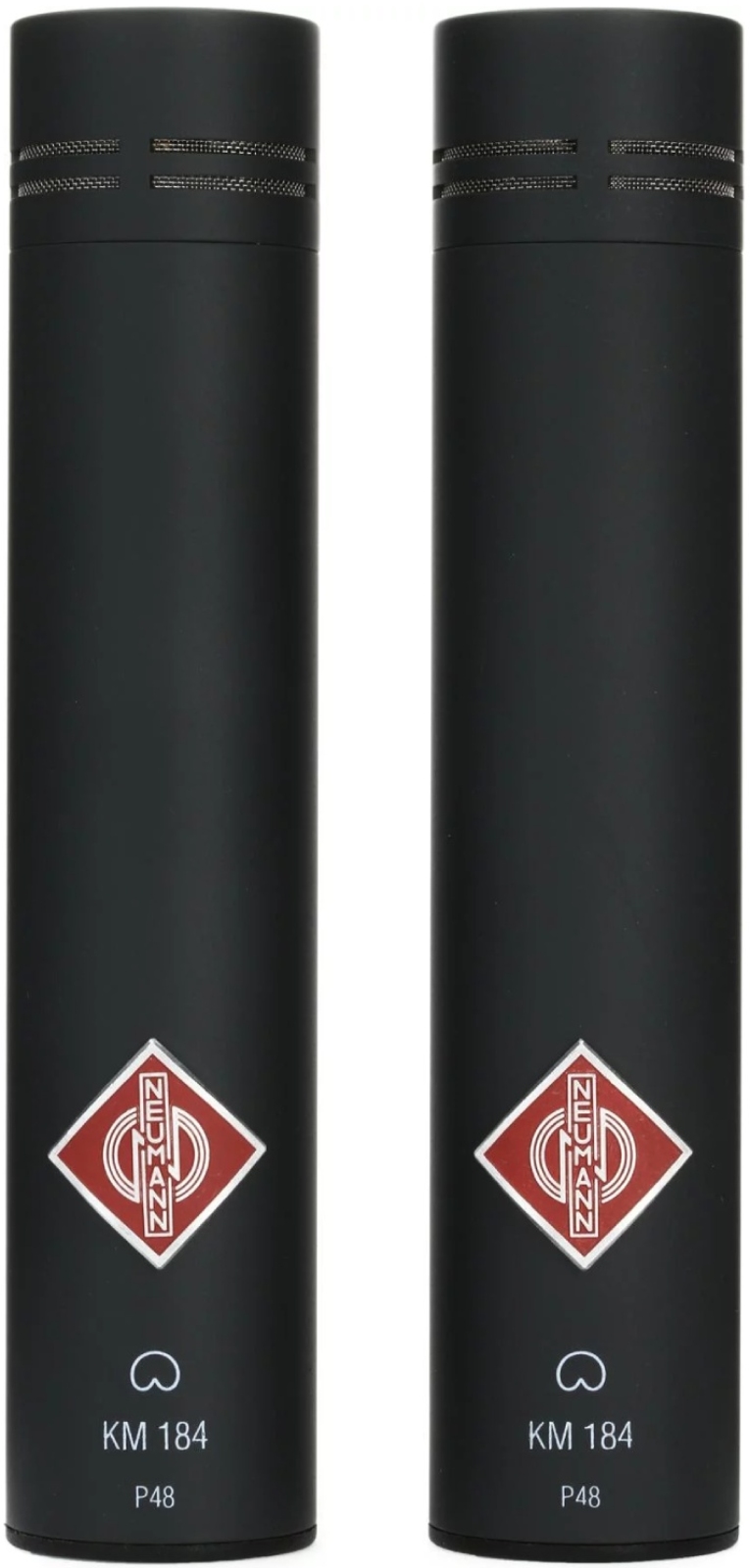

The KM 184 is a state-of-the-art small-diaphragm condenser microphone with a uniform, frequency-independent cardioid polar pattern. Its very natural and transparent sound with very low self-noise and high SPL capacity have made the KM 184 a world standard on stage and in the studio for many applications ranging from classical piano to heavy metal drums. While many microphones these days are designed to add their own sonic fingerprint, many applications require a faithful reproduction of the original acoustic event, without adding or removing anything. This is where the Neumann 180 Series comes in.
Despite its attractive price, the KM 184 offers state-of-the-art Neumann engineering. Its cardioid directivity is independent of frequency; Rearward sound rejection (180°) is excellent, even at low frequencies. In practice, there is no sound coloration over a wide shooting angle, which is crucial in multi-microphone setups and for accurate stereo/surround imaging. The frequency response of the KM 184 is very smooth and linear with a slight treble lift around 9kHz for added brilliance. Its innovative transformerless mic amplifier offers a wide dynamic range of 125 dB and is carefully designed to maintain the sonic integrity of the capsule. The KM 184 has a very low self-noise of just 13 dB-A and can handle high sound pressure levels of up to 138 dB without distortion. Thanks to its low impedance output stage, the KM 184 can run long cables of up to 300 meters (1,000 feet) without transmission losses.
The KM 184 is a universal microphone for studio and stage applications. Its transparent sound makes the KM 184 a superb microphone for acoustic instruments such as piano, percussion, drums, acoustic guitar, double bass, violin, cello, woodwinds and brass. The KM 184 can be used for both soloists and ensembles. Thanks to its superior off-axis behavior, the KM 184 is an excellent microphone for stereo and surround recording with perfect imaging. Although the KM 184 is not specifically optimized for the human voice, it is often used for classical singing and where sonic authenticity is paramount. Due to its small size, the KM 184 is visually unobtrusive and well suited for TV and radio applications.
Features:
- Paired small diaphragm condenser microphones
- Directivity: Cardioid
- Frequency response: 20 Hz - 20 kHz
- Sensitivity at 1 kHz in 1 kohm: 15 mV/Pa ± 1 dB
- Nominal impedance: 50 ohms
- Nominal load impedance: 1 kohms
- Equivalent sound level, CCIR: 22 dB
- Equivalent sound level, A-weighted: 13 dB-A
- Maximum SPL for THD 0.5%: 138 dB
- Signal-to-noise ratio, CCIR (re. 94 dB SPL): 72 dB
- Signal-to-noise ratio, A-weighted (re. 94 dB SPL): 81 dB
- Maximum output voltage: 10 dBu
- Supply voltage (P48, IEC 61938): 48 V ± 4 V
- Current consumption (P48, IEC 61938): 3.2 mA
- Corresponding XLR 3 F connector
- Included: 2x microphone clips, 2x windscreens, 1x wooden case
- Diameter: 22 mm
- Length: 107 mm
- Weight: 80 g
- Color: Black
