Boss Katana-Mini X
Inspiring Quality, Minimal Design
Katana-Mini X delivers acclaimed Katana tones in a fun and inspiring amp for daily practice and jamming. Evolving on the features of the popular Katana-Mini, it offers six versatile analog sound options and two simultaneous effects, housed in a robust wood cabinet for a bigger and fuller guitar experience. Katana-Mini X also provides many enhancements to energize your playing sessions, including an onboard tuner, front-facing panel controls, an internal rechargeable battery, and onboard Bluetooth® for streaming music from your smartphone.
Higlights:
- Inspiring Katana tone in a 10-watt mini amp
- Multi-stage analog gain circuit developed with the acclaimed BOSS Tube Logic approach
- Rich, full sound with a robust wood cabinet and a custom 5-inch speaker
- Three versatile amp types: Brown, Crunch, and Clean
- Three variations for each amp type, including a flat-response variation for acoustic-electric guitar and bass
- Three-band analog tone stack for smooth sound adjustment
- Two independent effect sections with 10 total effect types to choose from

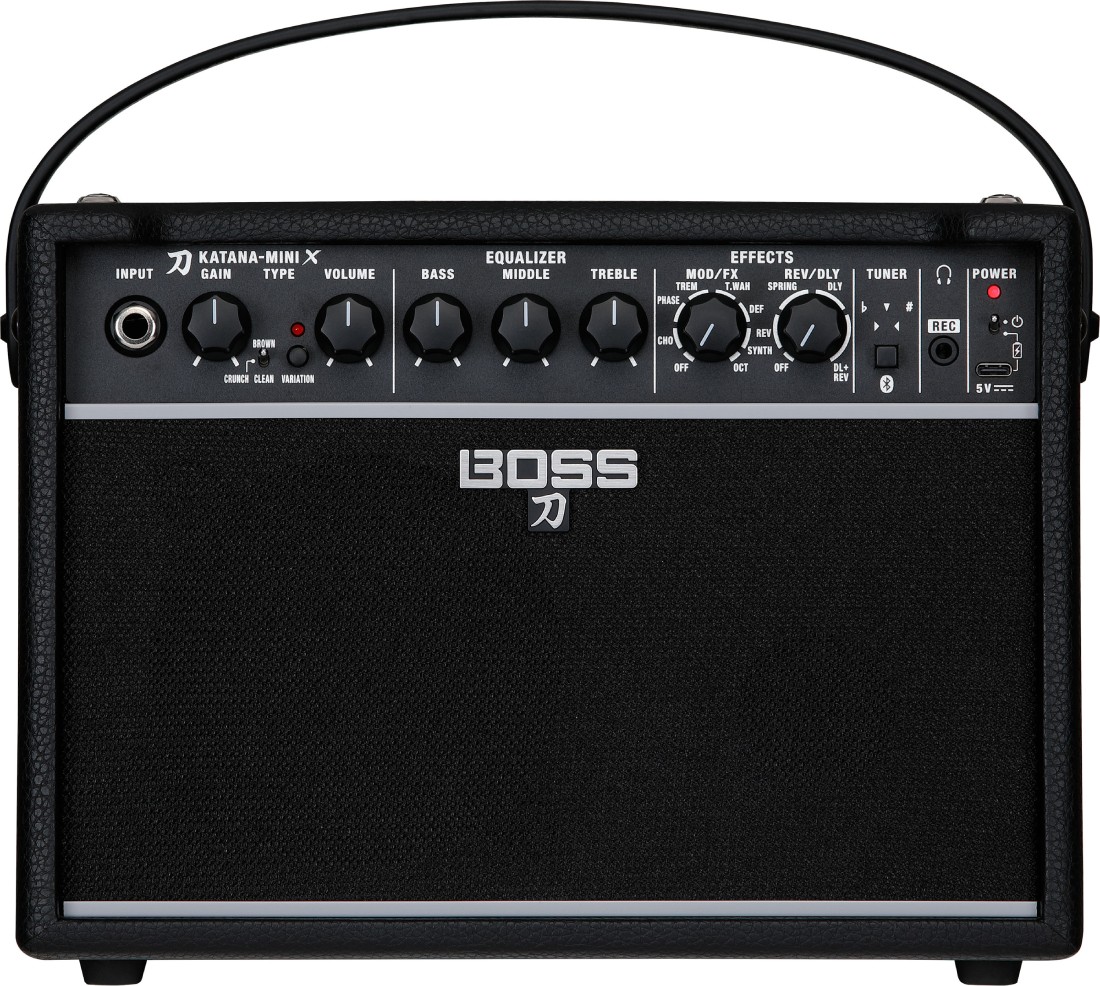

- Intuitive panel with front-facing controls
- Guitar/bass tuner with panel indicators
- Wirelessly stream audio from a mobile device via onboard Bluetooth
- Dedicated output with cabinet simulation and stereo effects for headphone practice and recording
- Rechargeable battery with up to 10 hours of continuous playing time*
- USB-C® jack for charging (USB Type-C to Type-A charging cable included)
*Actual battery life will vary depending on the usage conditions.Professional Sound, Compact Size
While its footprint is small, the Katana-Mini X sound is anything but. The multi-stage analog gain circuit features a sophisticated, detailed design that produces highly expressive tones with immersive depth and dimension, supported by a sturdy wood cabinet and custom 5-inch speaker for a satisfying feel and rich low-end response. Our no-compromise Tube Logic design approach brings you full-bodied sounds for every genre, including searing high-gain solo sounds and tight metal rhythm tones dripping with saturation and harmonic complexity.
Classic Katana Tones
Katana-Mini X features versatile amp characters derived from our stage-class Katana amp series. Three core amp sounds are available (clean, crunch, brown), along with a tonal variation that’s accessible with a panel switch. One variation is an uncolored clean sound for using Katana-Mini X with an acoustic-electric guitar or bass.
Your Daily Music Partner
Katana-Mini X comes packed with powerful tools to take your music to the next level. The convenient rechargeable battery allows you to move to different rooms or outdoor locations without the hassle of AC power. Bluetooth support lets you jam with music from your mobile device and use the amp as a portable speaker for casual music playback. The onboard guitar/bass tuner is always at the ready with a quick button press. And when you want to play quietly, you can plug in headphones and enjoy high-quality tones with built-in cabinet simulation and stereo effects.
Shape Your SoundKatana-Mini X features a traditional analog tone stack for natural sound shaping using familiar bass, mid, and treble controls. MOD/FX and REV/DLY sections are also on hand, each with a diverse range of BOSS effects and fast sound tweaks via single-knob controls that adjust multiple parameters at once. Both sections can be used simultaneously, letting you create combinations such as tremolo and spring reverb, phaser and delay, and many others.
Specifications:
- Power: 10 W
- Speaker: 12cm / 5"
- Connectors
- INPUT jack: 1/4-inch phone type
- PHONES/REC jack: Stereo miniature phone type
- 5 V (DC IN) port: USB Type-C(R)
- Bluetooth: Profile Support: A2DP (Audio)
- Power Supply: Rechargeable nickel-metal hydride battery
- Current Draw: 1500 mA
- Expected battery life under continuous use: Approximately 10 hours
- Battery charging time: Approximately 3 hours
- *To charge the unit, use the USB port of a computer or a commercially available USB power supply adaptor (5 V, 1.5 A or higher).
- Dimensions (excluding strap): 287 (W) x 145 (D) x 200(H) mm
- Weight (including strap): 2.7 kg
Accessories:
- Leaflet "Read Me First"
- USB Type-C(R) to USB Type-A cable for charging
